    DAPP Dura-Sun (Flat Solid Polycarbonate Sheet)

    What is DAPP Dura–Sun (Flat Solid Polycarbonate Sheet) ?
    Superior impact resistance and clarity for demanding applications DAPP Dura–Sun polycarbonate sheets are practically unbreakable, with glass–like transparency, at less than half the weight of glass. They can be used for architectural glazing of facades, roofing, or barrel vault skylights. DAPP Dura–Sun can be curved to form arches. DAPP Dura–Sun impact resistant polycarbonate sheets are ideal as machine guards, and for safety & security glazing. Thermoforming DAPP Dura–Sun is ideal for creating lighting fixtures, light boxes, and more.

    DAPP Dura–Sun solid polycarbonate sheets are excellent tough, 200 times stronger than glass, UV protection while the half weight of glass. Clear flat polycarbonate has high light transmission, up to the 92%. It is an ideal solution for a wide range of uses such as the construction skylight, stadium roofing, architectural glazing, and special noise barrier. DAPP Dura–Sun offers different types of flat polycarbonate and is available tinted, transparent, and translucent with various clarity and light diffuser.

    DAPP Dura–Sun solid polycarbonate roofing sheets are easy to cut and bend. The thickness is from 1.0mm–18.5mm. The width is from 1.22m–2.10m and the length can be customized. Below the 4mm of thickness, polycarbonate sheets can be folded into a roll packaged Exceed
    the thickness of 4mm, sheets are packaged by plate. The standard colours are clear, lake blue, green, bronze, opal and grey. DAPP Dura–Sun is made from the raw polycarbonate material from Lexan, Makrolon, or Sabic ensuring high quality. 10 years warranty having 50–80um UV
    protection.

    Main Characteristics

    Hail & Impact Resistant

    DAPP Dura–Sun Flat Solid Polycarbonate Sheet are having It is super impact resistance, 200 times stronger than glass and 30 times stronger than Acrylic. Flat solid polycarbonate is real unbreakable and durability.

    UV coated protected

    DAPP Dura–Sun Flat Solid Polycarbonate Sheet UV protected on one or both sides of polycarbonate panels which block 99% harmful rays.

    Balance Shade & Daylight

    DAPP Dura–Sun Flat Solid Polycarbonate Sheet has Clear flat polycarbonate has excellent light transmission, up to 92%,suitable for glazing roofing and skylight. Some Tinted,colored and embossed
    polycarbonate is available for a variety of light transmission, light diffusion and surface options.

    Weather resistance & Wide service temperature range

    DAPP Dura–Sun Flat Solid Polycarbonate Sheet having extraordinary weather resistance. It can resist heavy snow, wind, and hailstone even in harsh climate conditions It has good thermal insulation compared with glass. Keep warm in winter and keep cold in summer.

    Flame retardant

    DAPP Dura–Sun Flat Solid Polycarbonate Sheet are high flame resistance and self–extinguishing. It is hard to ignite and self–extinguishing.

    Lightweight, easy to install

    DAPP Dura–Sun Flat Solid Polycarbonate Sheet has the half–weight glass and it is easy to fabricate and install, It can be bent hot or cold into an unlimited range of shapes and can be readily by machined
    and fabricated.

    High Optical Clarity& Easy to clean

    DAPP Dura–Sun Flat Solid Polycarbonate Sheet are crystal clear and can give a high optical clarity. Meanwhile it Can easily be cleaned with a 100% cotton cloth using generous amounts of mild
    detergent and water.

    Superior Strength

    DAPP Dura–Sun Flat Solid Polycarbonate Sheet are having a very superior strength and durability.

    Improved Absorption of Noice

    DAPP Dura–Sun Flat Solid Polycarbonate Sheet are having a properties of improved absorption of any Noice.

    PRODUCT DESCRIPTION
    DAPP Durasun Solid General purpose polycarbonate sheet
    DAPP Durasun Solid 1 One side UV protection
    DAPP Durasun Solid 2 Both side UV protection
    DAPP Durasun Solid 3 UV protection on upper side and anti-fog protection on bottom side
    DAPP Durasun Light Light diffuser flat polycarbonate
    Types Colors Surface
    Clear 92% high light transmission Polished
    Transparent Bronze, Gray, Blue, Green, orange, 55%-80% light transmission Polished, embossed and frosted
    Translucent Lake-blue, white, glass green, yellow, light bronze, 15%-55% light transmission Polished, embossed, light and frosted
    Opaque White, bronze, opal, dark bronze, dark gray, cream Polished, embossed and frosted
    Property Method Units Value
    Density D-792 g/cm³ 1.2
    Service Temperature °C -40 to +120
    Impact strength ISO 6603/1 E50 J/m 150
    Thermal Conductivity C-177 W/m°K 0.21
    Tensile strength at Yield D-638 MPa 60
    Tensile strength at Break D-638 MPa 60
    Flexural Strength D-790 MPa 100
    Modulus of Elasticity D-638 MPa 2600
    Elongation at Break D-638 % >90
    Haze D-1003 % <0.5
    Yellowness Index D-313 YI <1
    Types Dimensions
    Widths + Lengths 1.22m × 30m, 1.56m × 30m, 1.82m × 30m, 2.10m × 30m
    Available thickness 1.0mm–18mm
    1. Thickness <=4mm, sheets can be folded into a roll
    2. Thickness >4mm, sheets will package by plate
    The light transmission of different thickness
    ( Standard: clear General purpose polycarbonate sheet )
    Thickness
    (mm)    		 2 2.5 4 6 8 10 12 14 16 18
    Light transmission 90% 88% 86% 85% 82% 81% 80% 75% 73% 72%

    Applications

    Highway Noice Barrier

    Car Shed Roof/Car Port

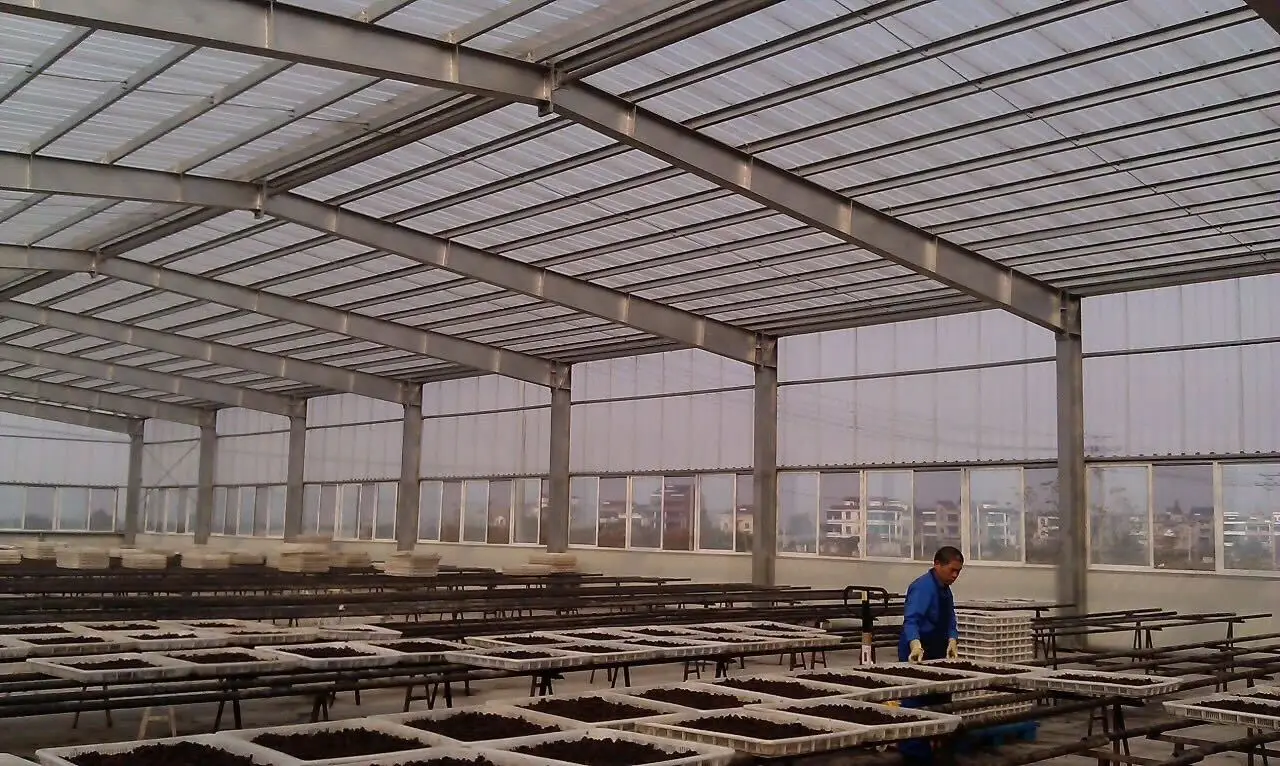

    Commercial Roofing

    Curtain Walls

    Decorative Partition

    Signage & Display

    Building Glazing Roof

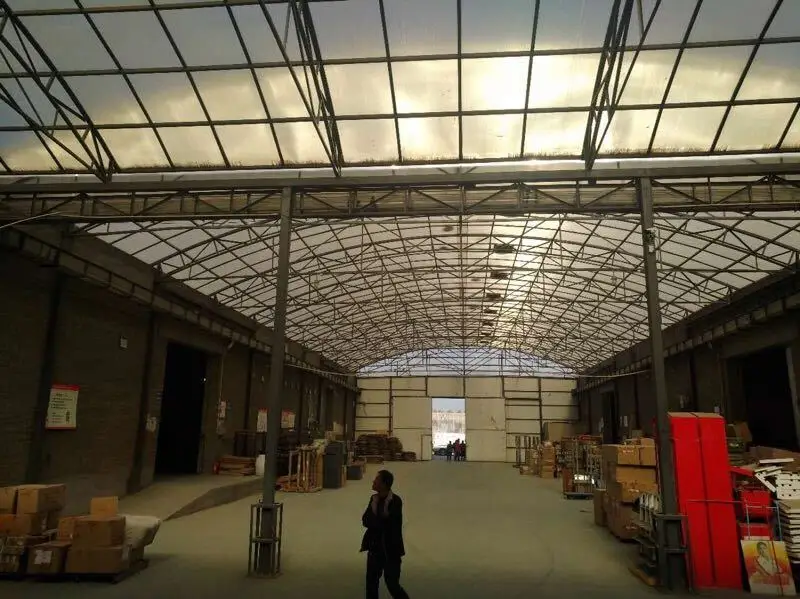

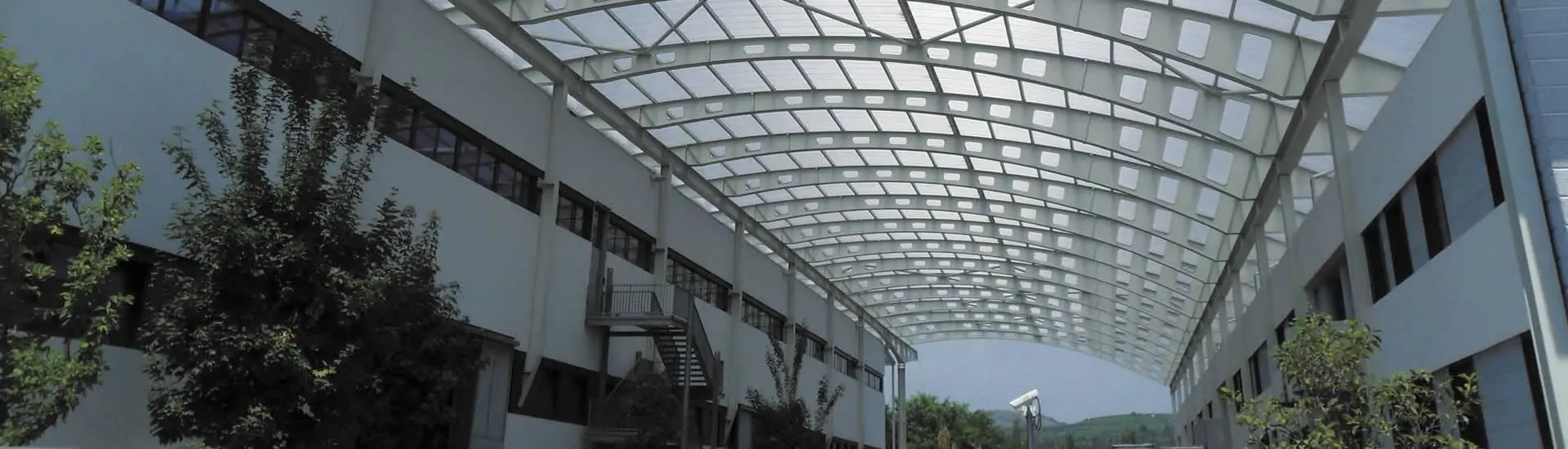

    Architectural Skylight & Daylight Roof

    Polycarbonate sheets for skylights and architectural glazing

    Roof Glazing
